Product Characteristics：

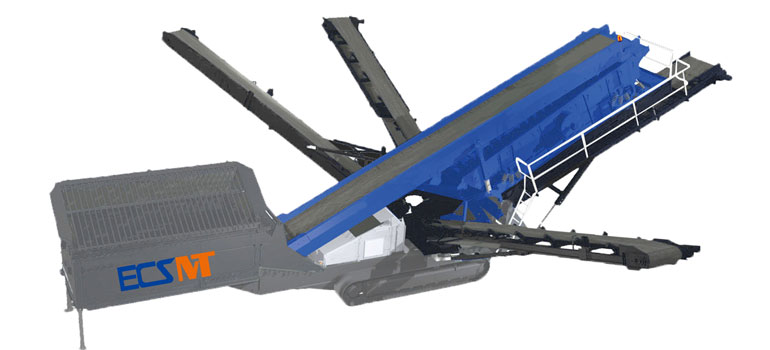

The EMS933 crawler moving circular vibrating screening station is a new product developed by Shandong Mix Machinery Equipment Co., Ltd. according to demanding of market. It is hydraulically driven, equipped with a three-layer sieve and four conveyor belts conveying finished materials,crawler moving circular vibrating sieving station featuring high productivity, quick installation, easy maintenance and convenient transportation
- 1. High efficiency of sieving because of the whole new large-size and three-layer sieve and hydraulic motor driving.
- 2. The combination of the wedge tension device, the inspection hole and the underlying hydraulic tension device make the installation and replacement of sieve more convenient and quicker.
- 3. The four-stage finished material conveyor belt can be tilted or rotated to adjust the discharge position to meet different stacking requirements.
- 4. Reliable folding system reduces the space occupied by equipment and facilitates transportation.
Technical parameter
| Scope of application | It is used for separating crushed gravel aggregates and aggregate gravel layers for recycling. |
|---|---|
| Processing capacity | 350tph *The data is based on broken limestone and a bulk density of 1.6 t/m3. The actual production depends on the composition of the raw materials, the size of the feed, and the pre-sieving. |
| Hopper capacity | 8 m³ |
| Sieving box | Sieving box Double bearing high performance three-layer circular vibrating sieve 6100mm×1520mm |
| Power | CAT C4.4 97kw |
| Weight | 40 t（No fixed sieve） |
| Dimension of transportation status | 19300mm×3000mm×3500mm |
| Dimension of Working state | 19500mm×17800mm×7100mm |
