Product Characteristics：

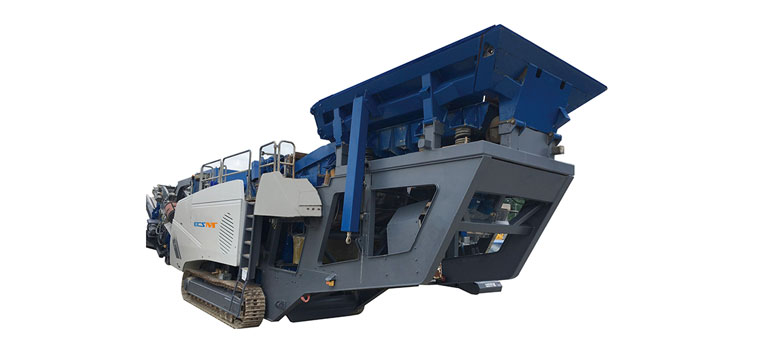

EMI130 Tracked mobile impact crusher the latest generation of mobile impact crushing equipment.
It is widely used to process blasting natural stone, asphalt mixture and demolition residues, and produces top-quality finished products.
- 1.Super heavy-duty rotors, high wear-resistant materials and large crushing cavity make it have large feeding size, stable product, high output, good particle shape and large crushing ratio.
- 2.The rear frame of the crusher is opened by hydraulic pressure for easy maintenance and repair.
- 3.Side discharge belt can be disassembled and folded.
- 4.Adopt intelligent wireless remote control device to walk on the track by itself, and can operate the upper and lower flatbed trailers by single person remote control to realize fast transition work;
- 5.Optional iron remover or returning system or plate feeding system according to customer needs.
Technical parameter
| Capacity | 450t/h |
|---|---|
| Max feeding size | 1100mm×700mm |
| Crusher feeding inlet | 1300mm×900mm |
| Crusher rotor diameter | 1200mm |
| Crusher drive power | 260kw |
| Motor power | 135KVA |
| Diesel power | 371kw |
| Transportation dimensions | 18400mm×3000mm×3750mm |
| Weight | 49t(58tсRS) |
